HCT200 Take Up Bearing Units Bearing Housing
HCT200 Take Up Bearing Units Bearing Housing
HCT200 Take Up Bearing Units Bearing Housing
HCT200 Take Up Bearing Units Bearing Housing
HCT200 Take Up Bearing Units Bearing Housing
HCT200 Take Up Bearing Units Bearing Housing
HCT200 Take Up Bearing Units Bearing Housing
HCT200 Take Up Bearing Units Bearing Housing
HCT200 Take Up Bearing Units Bearing Housing
HCT200 Take Up Bearing Units Bearing Housing
HCT200 Take Up Bearing Units Bearing Housing
HCT200 Take Up Bearing Units Bearing Housing

HCT200 Take Up Bearing Units Bearing Housing

Standard duty Self aligning Concentric locking collar
Product consulting

HCT200

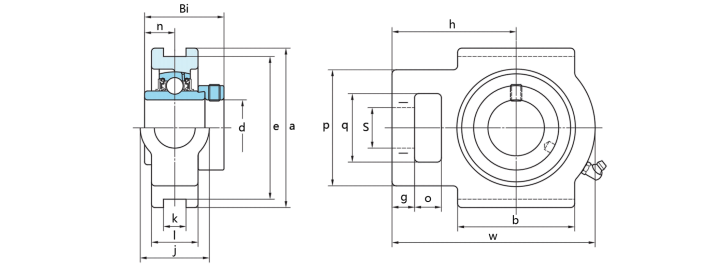

Unit No. Shaft Dia(mm) Dimensions Bearing No. Housing No. Weight (kg)
(mm)
d 0 g p q s b k e a w j l h Bi n
HCT204 20 16 10 51 32 19 51 12 76 89 94 32 21 61 43.7 17.1 HC204 T204 0.78
HCT205 25 16 10 51 32 19 51 12 76 89 97 32 24 62 44.4 17.5 HC205 T205 0.87
HCT206 30 16 10 56 37 22 57 12 89 102 113 37 28 70 48.4 18.3 HC206 T206 1.3
HCT207 35 16 13 64 37 22 64 12 89 102 129 37 30 78 51.1 18.8 HC207 T207 1.68
HCT208 40 19 16 83 49 29 83 16 102 114 144 49 33 88 56.3 21.4 HC208 T208 2.45
HCT209 45 19 16 83 49 29 83 16 102 117 144 49 35 87 56.3 21.4 HC209 T209 2.45
HCT210 50 19 16 86 49 29 86 16 102 117 149 49 37 90 62.7 24.6 HC210 T210 2.65
HCT211 55 25 19 95 64 35 95 22 130 146 171 64 38 106 71.4 27.8 HC211 T211 4.04
HCT212 60 32 19 102 64 35 102 22 130 146 194 64 42 119 77.8 31 HC212 T212 4.89
HCT213 65 32 21 121 70 41 121 26 151 167 224 70 44 137 85.7 34.1 HC213 T213 7.01
HCT214 70 32 21 121 70 41 121 26 151 167 224 70 46 137 85.7 34.1 HC214 T214 6.8
HCT215 75 32 21 121 70 41 121 26 151 167 232 70 48 140 92.1 37.3 HC215 T215 7.64
